Manifold

Manifold

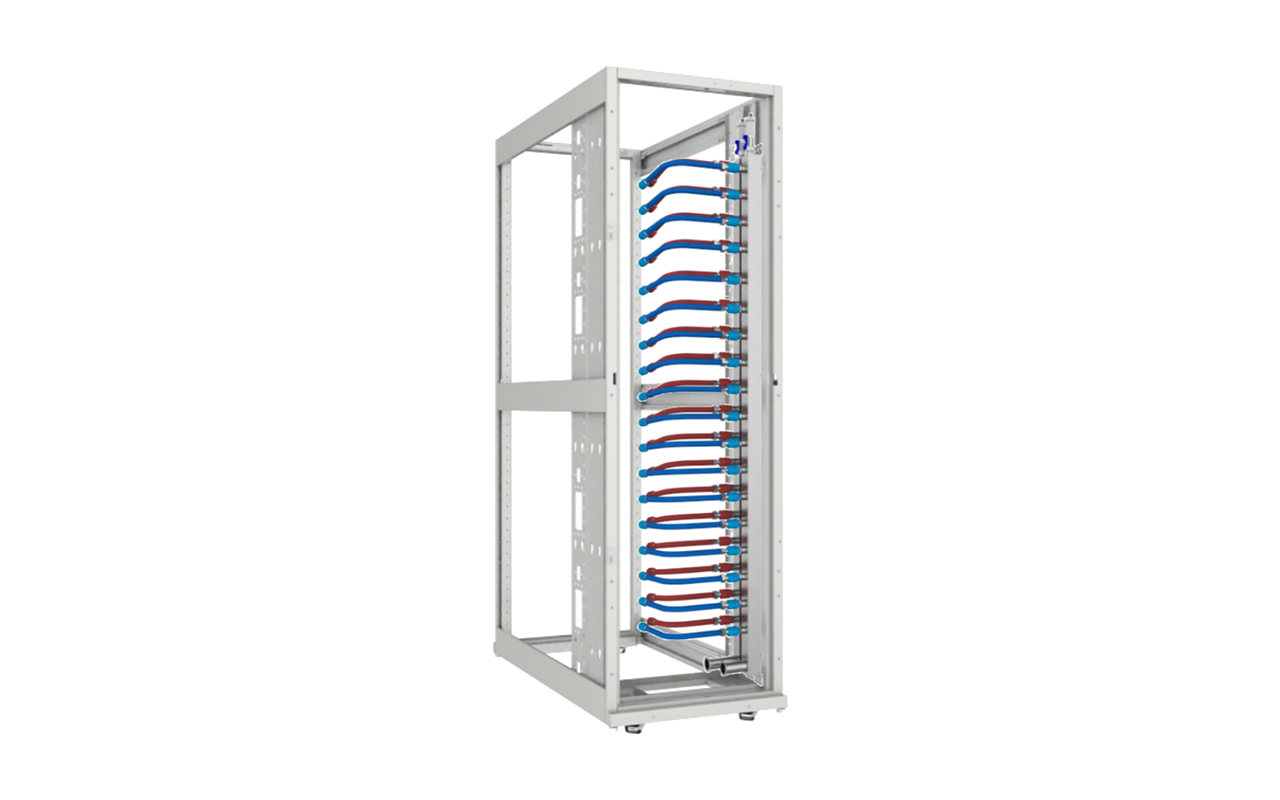

Manifold, flexible hoses and drip-less quick disconnect couplings are included in the rack. The rack manifold distributes cooling liquid inside the rack from the CDU to the IT equipment and back again. The manifold delivers the flow rate required to cool the IT equipment, at targeted pressure drop, and provides a uniform flow distribution within the rack.
PRODUCT DESCRIPTION

•Material: Stainless Steel 304 or 316L

•Inert gas shielded Automatic welding

•Passivated surface treatment

•Available for customized design

PRODUCT SPECIFICATIONS

Item

XMF30S4

XMF40S4

XMF50S4

Main   Material

Stainless Steel 304/316L

Manifold   Section Size (mm)

30*30

40*40

50*50

Full   Length (mm)

1870/2000/2130

Tri-Clamp   (in)

1

1-1/4

1-1/2

Num.   of Branches

12/18/24

Size   of UQD

04/06/08

Design   Pressure of Manifold Assy.(MPa)

0.5

Coolant

Pure Water / Propylene Glycol

Soft   Hose

EPDM, 500mm

Est.   Weight (kg)

6

8

11
