Crypto Mining Infrastructure

AmpLink offers a comprehensive range of the latest crypto mining infrastructure solutions, including complete power distribution solutions for Bitmain and Whatsminer, as well as their new high-power liquid-cooled miners. Our products are widely used in virtual currency mining sites around the world. As an original manufacturer, we are distinguished by our global deployment and high-quality products.

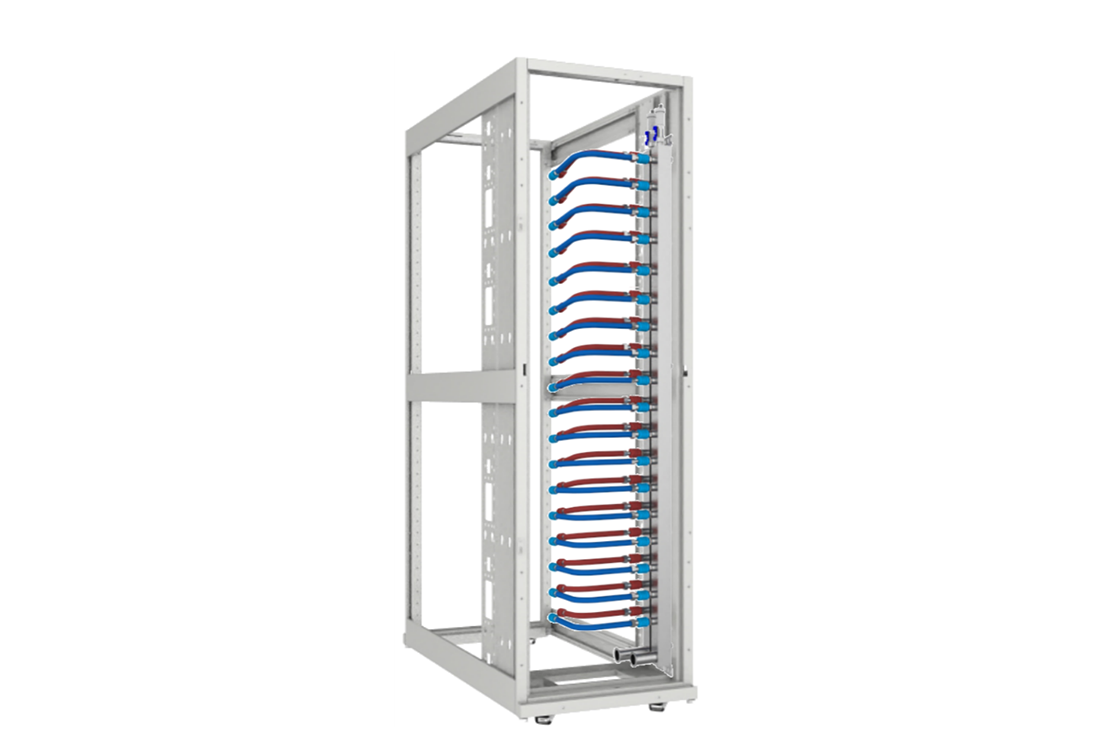

Liquid Cooling Rack for Crypto Mining


• Frame : Powder coated, 2.0mm galvanized steel

• PDU Input Rating : 3Phase 346~415V, 3P+N+PE, 100kW*2

• PDU Feature: Input Metered & Outlet Switched

• Tri-clamp: Stainless Steel 304 2"

• PETF Hose: Length 600mm, Inner diameter Ø10mm

• Manifold: Stainless Steel 304, 50mm*50mm

AmpLink full range of Crypto Mining PDU

Whatminer Hydro PDU (4pin connector)

-Basic_3Phase: 200kVA-20port ; 240kVA-24port
-Smart_3Phase: 200kVA-20port ; 240kVA-24port

Bitman Aircooling PDU-T21 (6pin connector)

-Basic_3Phase: 250A-24port ; 185A-18port; 125A-12port

Bitman Aircooling PDU-S21 (6pin connector)

-Basic_3Phase: 125A-24port ; 63A-12port

Aircooling miner PDU-C19 outlet, junction box

-Basic-3Phase: 63A-12C19, 80A-18C19,125A-24C19
-Smart-3Phase:63A-12C19, 80A-18C19,125A-24C19

Related products


High power density rack PDU

More+
web monitoring.png

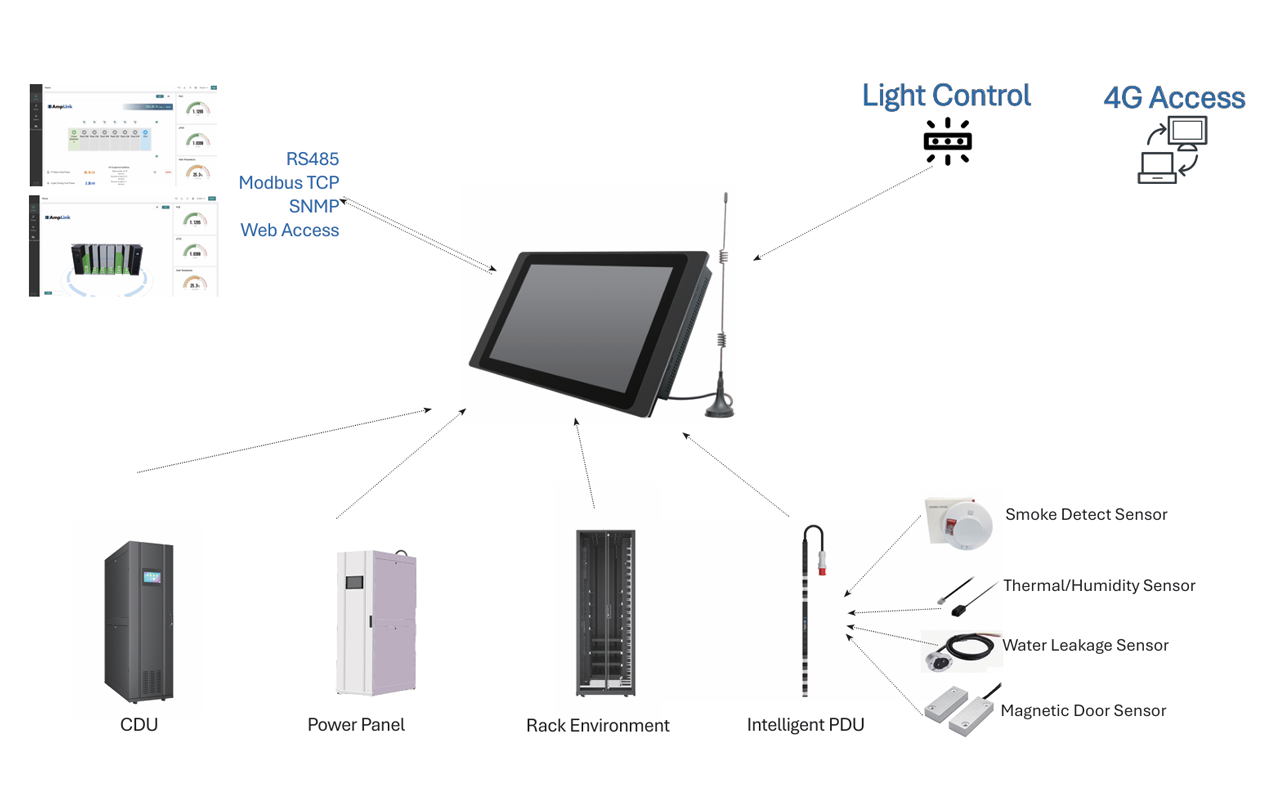

Environment Monitoring
